Camera Hội Nghị Truyền Hình Trực Tuyến MST-45GH 4K UHD Zoom 20x, Auto Tracking

Brand: MSThoo
Model: MST-45GH
0528.47.6666




    Packing list
    -1 x MST-45GH Conference Camera
    -1 x IR Remote Control
    -1 x DC 12V power adapter
    -1 x USB 3.0 Video Cable 3m
    -1 x Bracket
    -1 x Fixed Screws

    Specifications

    Image Parameters
    Resolution HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50
    Image Sensor SONY 1/2.8″ CMOS
    Pixels 8.50 Megapixels, 8.29 Effective Megapixels
    Scan Mode Line by line
    Lens 20X Optical Zoom, f=5.2mm(W)~104mm(T), F1.55~F3.13
    Horizontal View Angle 61.2°(W)~3.2°(T)
    Vertical View Angle 33.2°(W)~1.8°(T)
    Focus System Auto, Manual
    Shutter Speed 1/20s ~ 1/10000s
    Minimum Illumination 0.05 Lux @ (F1.5, AGC ON)
    Exposure Auto, Manual, Iris Priority, Shutter Priority, Brightness priority
    White Balance Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual
    Backlight Compensation Support
    Digital Noise Reduction 2D&3D Digital noise reduction
    S/N Ratio ≥45dB
    Pan/Tilt
    Pan Angle ±168°
    Tilt Angle -30°~+90°
    Pan Speed 1°~60°/s
    Tilt Speed 1°~60°/s
    Preset Positions 9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC
    Preset Accuracy 0.05°±10%
    Flip Support
    POE 802.3af
    AI
    AI Tracking Support
    Auto Framing Support
    Tracking Size Support
    Tracking Sensitivity Support
    AI Guard Position Support
    USB
    Protocol UVC 2.0
    Operating System Window7 and above, MacOS, Linux, Android
    Video Compression YUY2, MJPEG
    Resolution 3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240
    Frame Rate Max.30
    UVC Control Support
    LAN
    Protocol TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP
    Video Compression H.264, H.265
    Code Stream Main code stream*1
    Main Stream Resolution 1920*1080
    Bitrate Control VBR, CBR
    Audio
    Audio Compression AAC
    Audio Bit Rate 128kbps

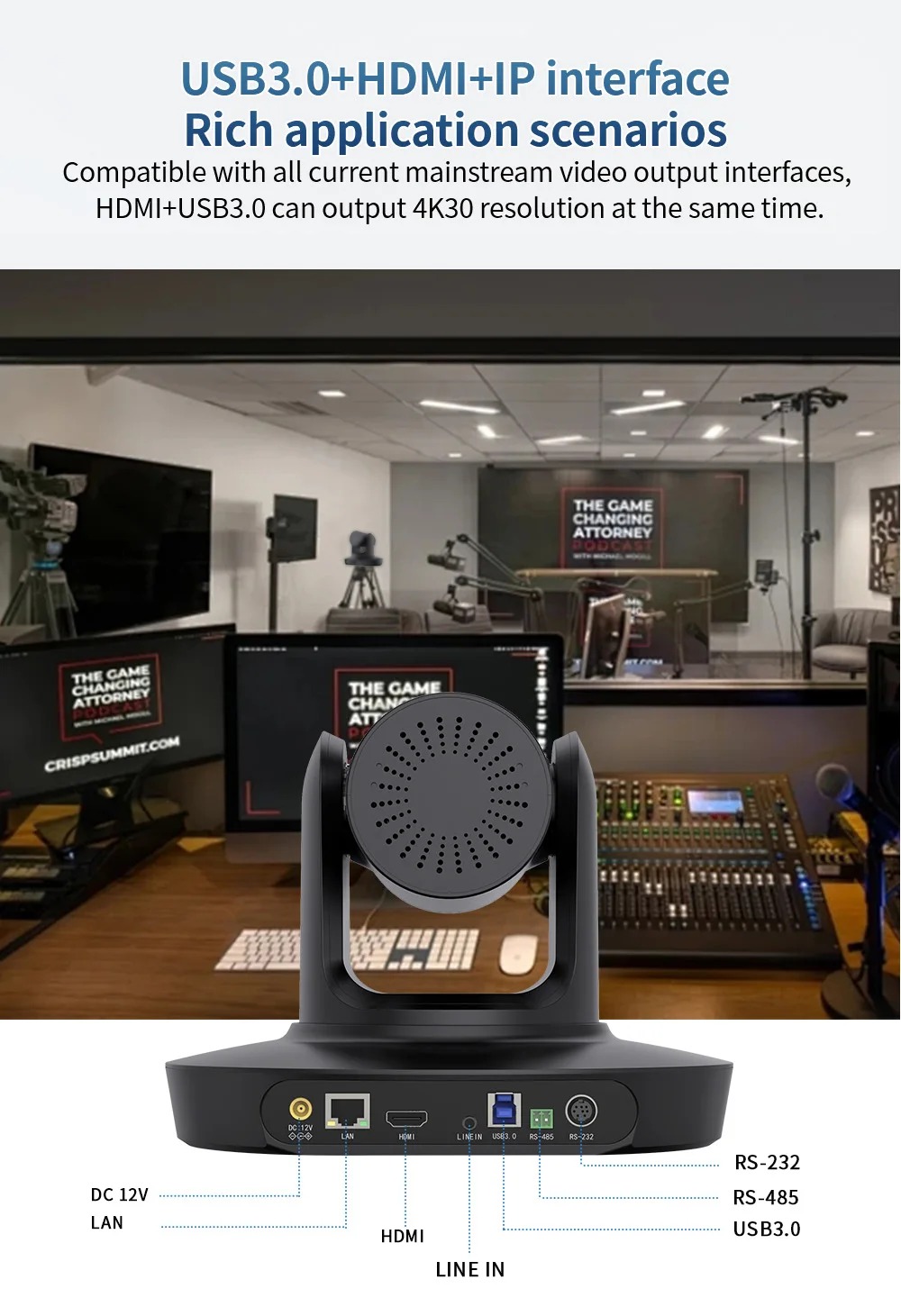

    Interface
    HDMI Interface 1 Line, HDMI: Version 1.5
    USB Interface 1 Line, USB3.0, Type-B Socket
    Network Interface 1 Line, RJ45: 10M/100M adaptive Ethernet port
    Audio Interface 1 Line, Line In, 3.5mm
    Serial Interface 1 Line, RS232 IN: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol.
    1 Line, RS422/485: 3-Core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol.
    Power Interface JEITA RC-5320A Type 4
    General Specifications
    Input Voltage DC 12V
    Input Current Max.1.5A
    Power Consumption Max.18W
    Operating Temperature 0~40℃
    Storage Temperature -10~60℃
    Color Black
    Dimension (W)224*(D)170*(H)174mm
    Weight 1.2kg
    Accessories DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional)
